CUBE AMS Hybrid 177 C:62 AT 600X

Description

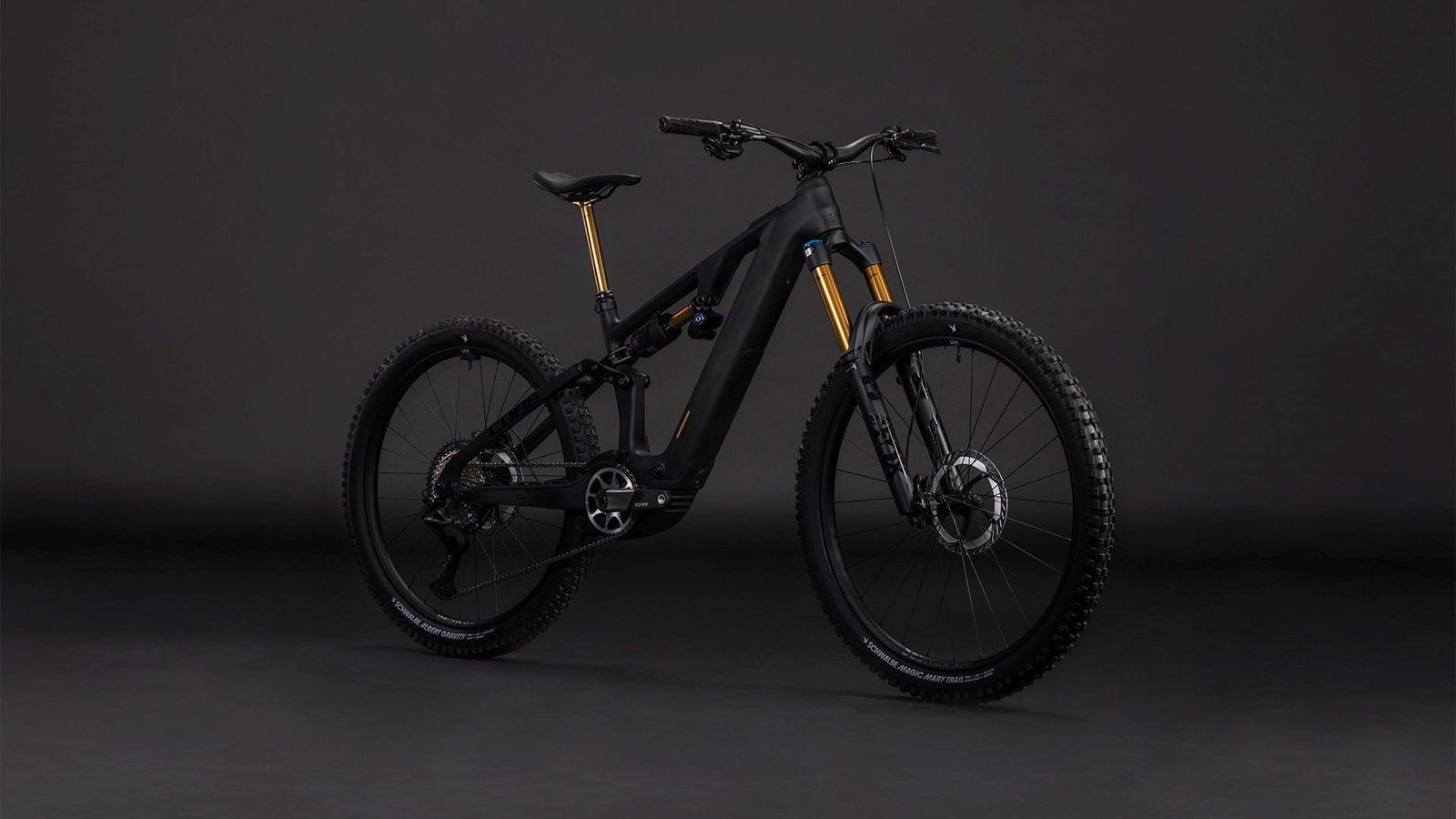

Cube AMS Hybrid 177 C:62 AT 600X – Flagship Enduro E-MTB with Fox Factory & Shimano XT Di2

Experience the ultimate all-mountain electric bike with the Cube AMS Hybrid 177 C:62 AT 600X Actionteam edition. This flagship enduro e-MTB combines a lightweight C:62® carbon frame with Fox 38 Factory/Float X2 Factory suspension (170mm), powerful Bosch Performance Line CX-R motor (100Nm), 600Wh battery, Shimano XT Di2 electronic shifting, and aggressive mullet wheel configuration for race-ready performance and uncompromising trail dominance.

C:62® Carbon Monocoque – Race-Proven Construction

Built from Cube’s premium C:62® carbon fiber using Advanced Twin Mold Technology, this Actionteam-spec electric mountain bike delivers exceptional strength-to-weight performance for professional-level riding. The high modulus carbon fiber reinforced with nano particle-infused resin creates an extremely durable chassis weighing just 21.4kg total. The fully integrated 600Wh Bosch PowerTube battery maintains optimal weight distribution with PowerMore compatibility for an additional 250Wh range extender when marathon rides demand maximum capacity.

Bosch Performance Line CX-R – Professional-Grade Power

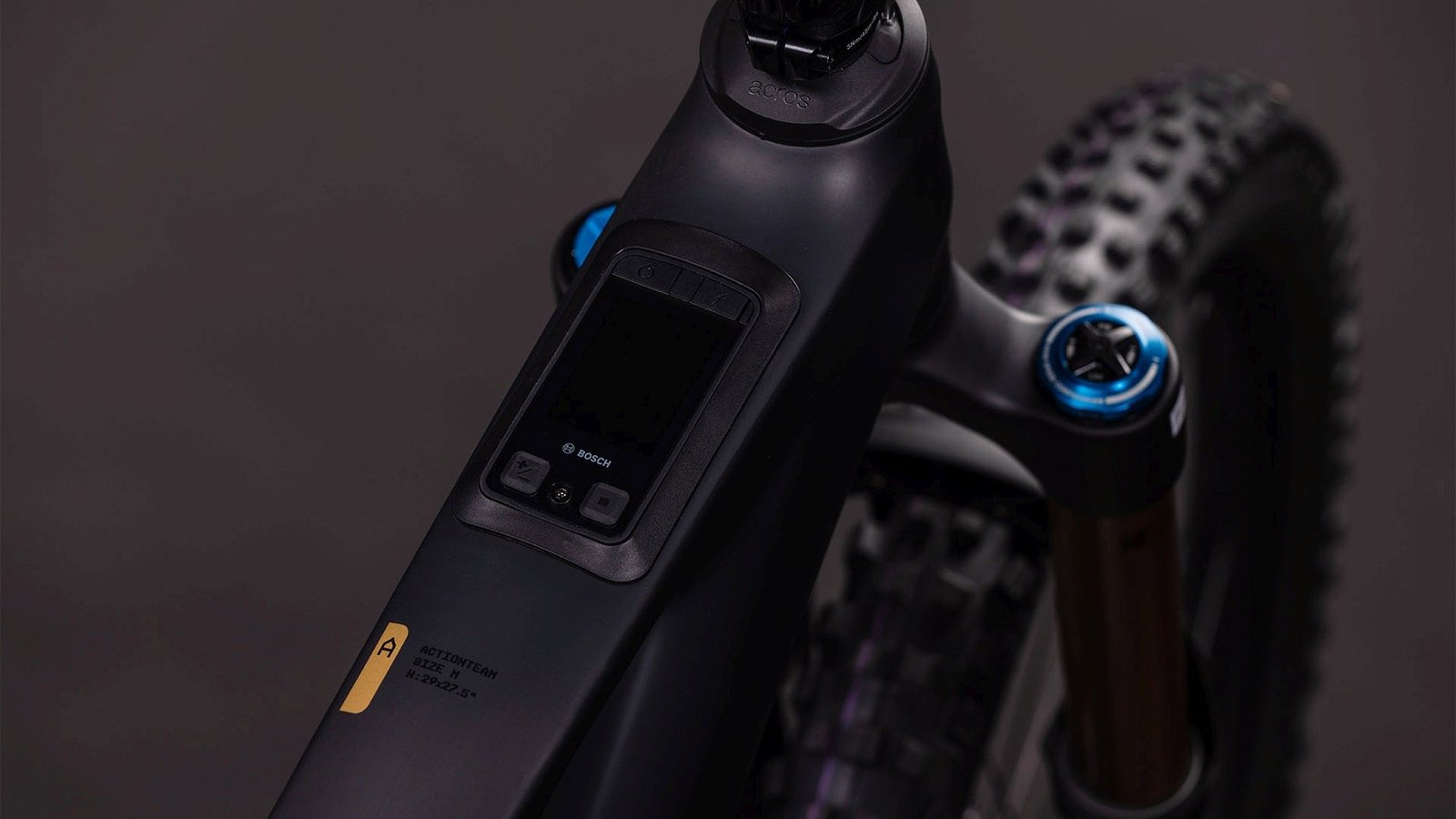

The flagship Bosch Performance Line CX-R drive unit delivers up to 100Nm of race-tuned torque, providing the muscle needed for professional riders and demanding enthusiasts. Developed with Cube’s racing teams, this premium electric motor represents the pinnacle of Bosch’s ten-year development program, offering precise power delivery, exceptional quiet operation, and optimized weight distribution. The integrated Bosch Mini Remote with Kiox 400C display provides intuitive control and comprehensive ride data protection within the top tube.

Fox Factory Suspension – Premium Kashima Performance

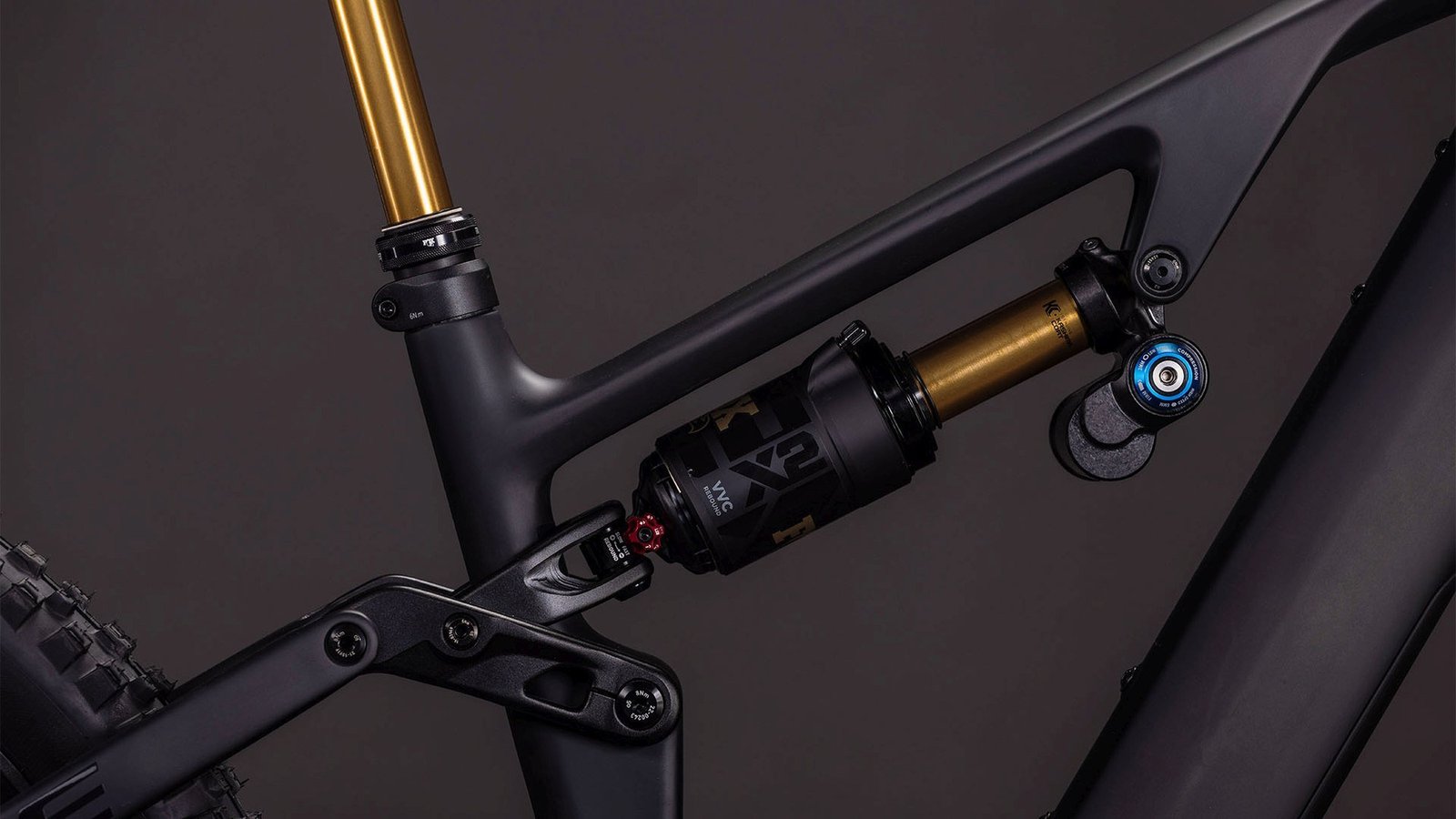

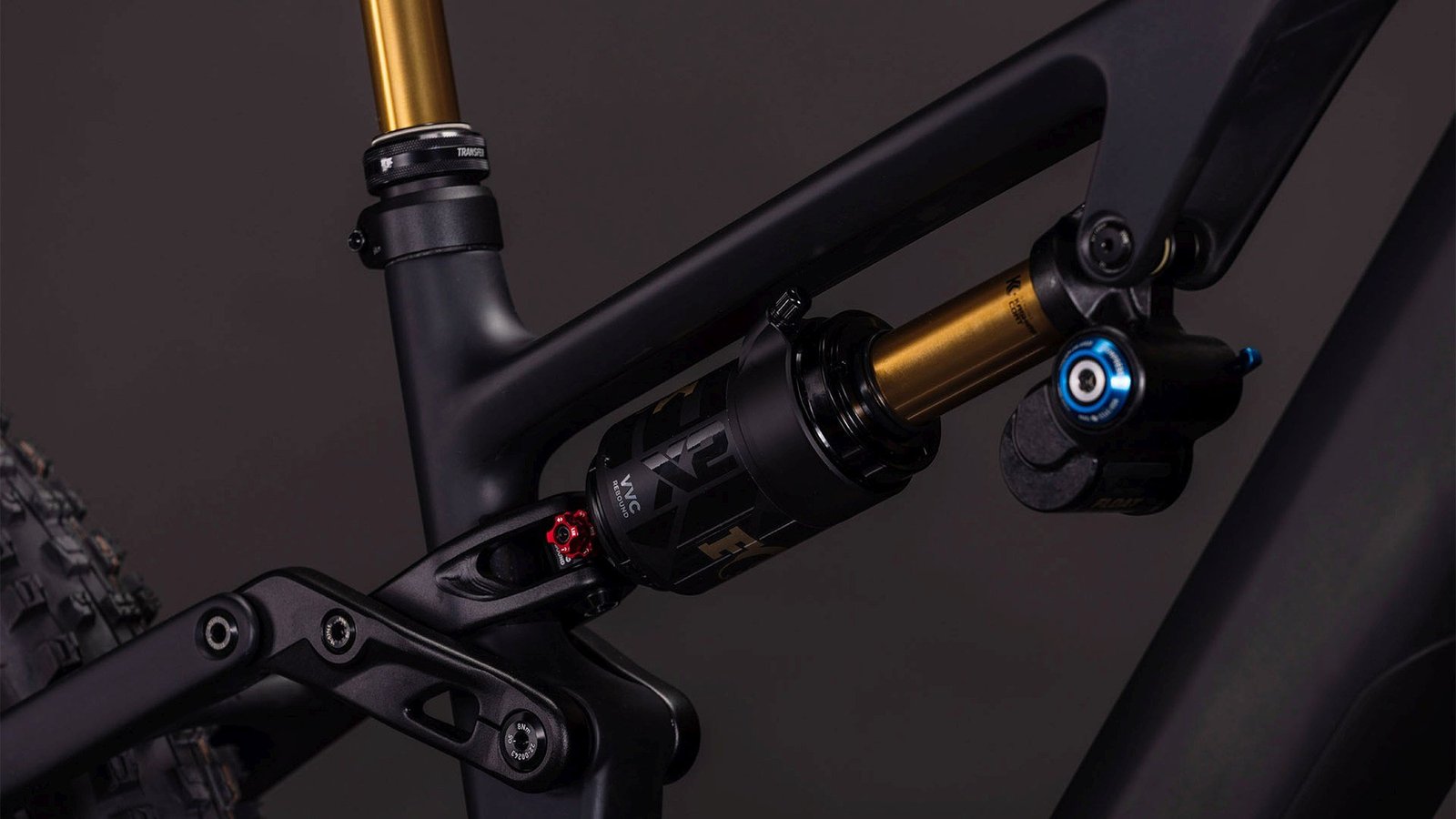

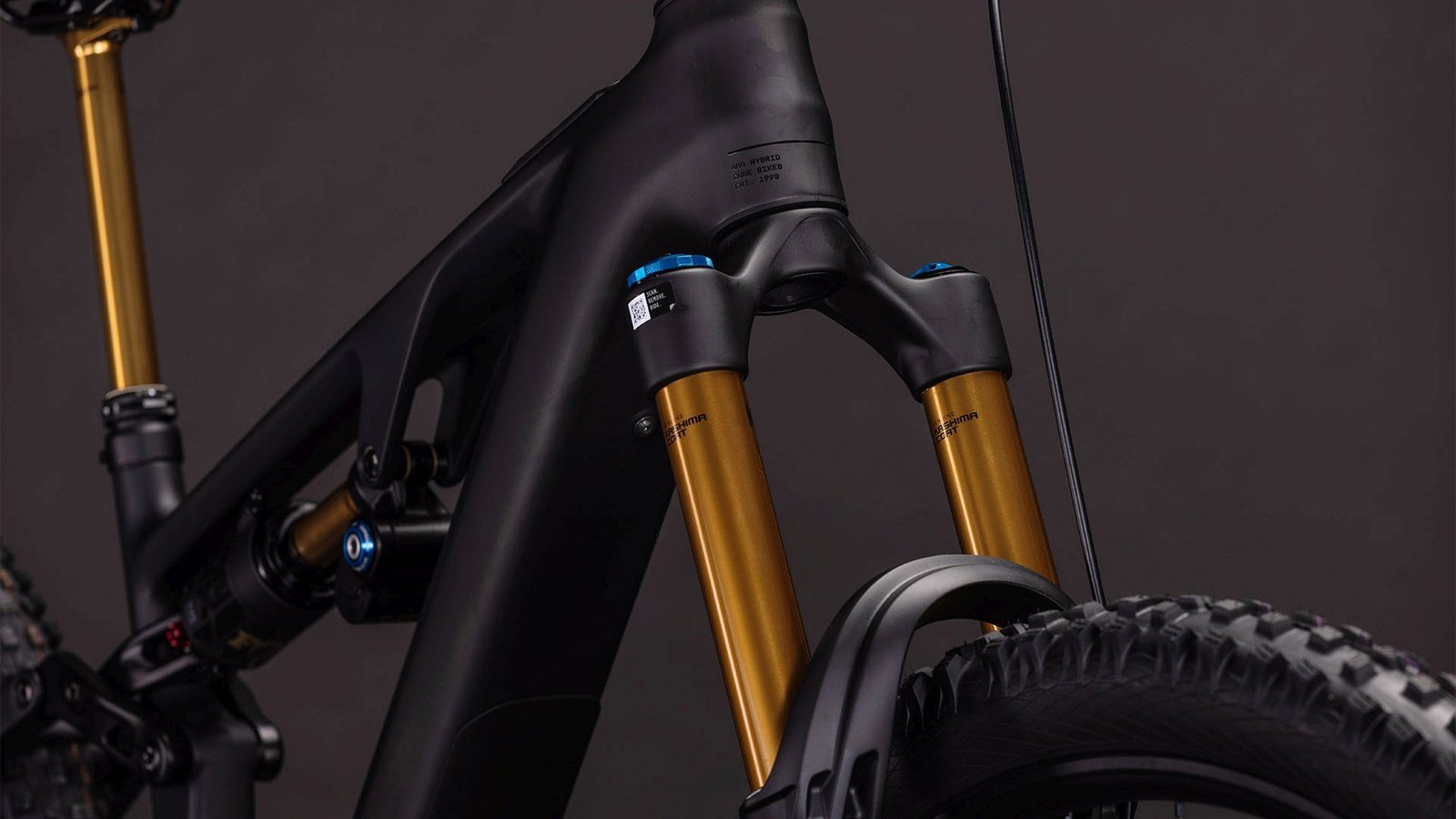

Take on the most demanding terrain with ultimate confidence thanks to Fox’s flagship Factory suspension package. The Fox 38 Float Factory fork (170mm travel, GRIPX2 damper, Kashima coating, tapered, 15x110mm) delivers race-level stiffness, infinitely adjustable control, and plush small-bump sensitivity. Paired with a Fox Float X2 Factory rear shock (230x65mm, adjustable high/low speed compression and rebound, 2-position lever, Kashima coating), this suspension system provides championship-winning performance with smooth operation and aggressive bottom-out resistance for charging descents.

Mullet Wheel Configuration – Race-Ready Handling

The 177 designation indicates this bike’s proven mullet configuration: 29-inch front wheel for maximum roll-over capability and high-speed stability, combined with a 27.5-inch rear wheel for agile handling and quick direction changes. This mixed-wheel setup delivers race-tested advantages: confident high-speed stability on technical descents while maintaining playful, maneuverable character in tight sections and switchbacks.

Shimano XT Di2 Electronic Shifting – Wireless Precision

Shimano’s flagship XT Di2 electronic 12-speed drivetrain delivers flawless, lightning-fast shifts at the push of a button. The electronic shifting system provides perfect gear changes under load, automatic trim adjustment, and programmable shift modes. The 10-51T cassette provides ultra-wide range gearing for steep technical climbs and high-speed descents. Combined with the RaceFace Era carbon crankset (36T chainring), this drivetrain represents the pinnacle of e-MTB shifting performance.

Shimano XT Hydraulic Brakes – Race-Proven Stopping

Professional-level braking comes from Shimano’s XT hydraulic disc brakes with dual 203mm rotors front and rear. These race-proven brakes deliver exceptional modulation, consistent power, and fade-free performance essential for controlling a 21.4kg e-MTB on extended descents and technical terrain. Shimano’s reliable servo-wave technology provides powerful one-finger braking with excellent lever feel.

Premium Actionteam Components

RaceFace Era carbon crankset: 36T chainring for maximum weight savings and stiffness
Newmen Beskar 30 wheels: Base/strong spec with 28/32 spokes, tubeless-ready
Schwalbe premium tires: Magic Mary 2.5″ Trail Pro Ultrasoft (front), Albert 2.5″ Gravity Pro Soft (rear)
RaceFace Turbine R 35 stem: Lightweight 50mm aluminum stem
RaceFace Era 35 handlebar: Premium 35mm bore handlebar (780mm width)
Fox Transfer Factory dropper post: Kashima-coated with 150-210mm stroke
Adjustable headset: 0.6° angle adjustment (slack/moderate geometry)
UDH derailleur hanger: Universal compatibility and future-proofing
Bosch Kiox 400C display: Integrated top tube protection
Bosch 4A fast charger: Quicker recharge times included

Advanced Integration and Geometry

The Agile Trail Geometry features adjustable head tube angle (63.6°/64.2° slack/moderate), lowered standover height, and optimized rider positioning for adventurous line choices. Short 443mm chainstays enhance playfulness while maintaining stability. Advanced Internal Cable Routing routes all cables through the headset for clean aesthetics and protected components. The Direct Mount chain guide prevents drops on rough terrain.

Race-Ready Enduro Performance

At 21.4kg total weight with 170mm front and rear Fox Factory suspension, the AMS Hybrid 177 C:62 AT represents flagship enduro e-MTB performance. The combination of Fox Factory Kashima coating, Shimano XT Di2 electronic shifting, Schwalbe premium gravity tires, and mullet wheel configuration creates a race-ready weapon capable of tackling UCI-level enduro stages, bike park laps, and all-day backcountry missions with championship-winning capability.

Specifications

Frame

Fork – Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
Shock – Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever
Weight – 21.4kg

E-bike System

Engine – Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Battery – Bosch PowerTube 600
Display – Bosch Kiox 400C

Drivetrain and brakes

Front brake – Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
Rear brake – Shimano XT BR-M8220, Hydr. Disc Brake (203/203)
Rear derailleur – Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System
Shifters – Shimano XT Di2 SW-M8250-IR, Direct Attach
Crankset – RaceFace ERA E-MTB, 36T
Cassette – Shimano XT CS-M8200, 10-51T
Chain – Shimano XT CN-M8100

Cockpit

Headset – Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar – RaceFace ERA 35
Stem – RaceFace Turbine R 35
Bar tape or grips – Acid Disrupt, soft compound

Wheels

Wheels – Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre – Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5
Rear Tyre – Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5

Other parts

Saddle – Acid Venec EMTB Trail 140
Seatpost – Fox Transfer Factory 31.6mm, Kashima Coated
Seatpost clamp – CUBE Seatpost clamp
Pedals – Acid PP MTB
