CUBE AMS Hybrid 177 C:62 TM 600X

Description

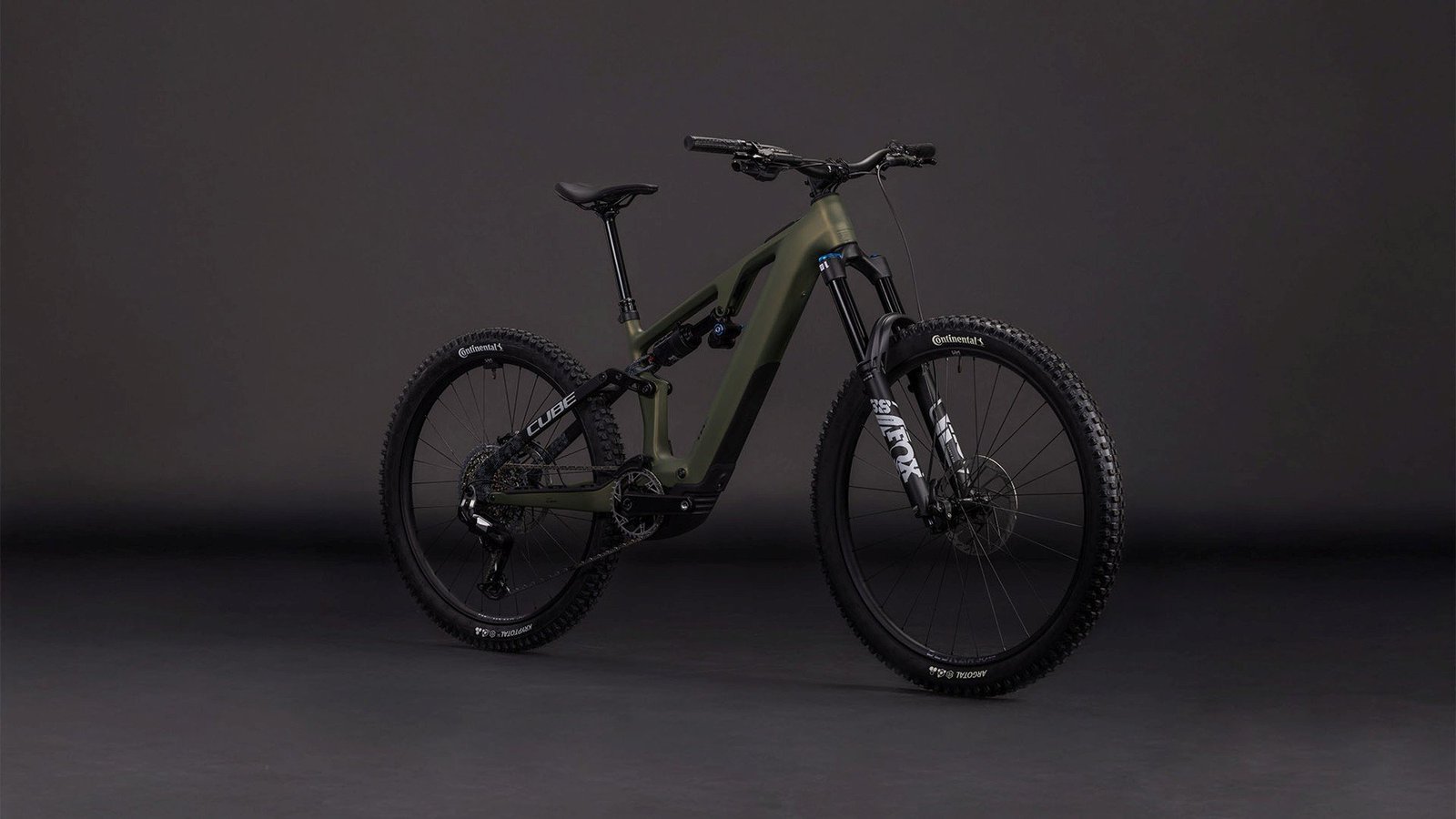

Cube AMS Hybrid 177 C:62 TM 600X – Enduro Carbon E-MTB with Mullet Wheels and 170mm Travel

Experience the ultimate all-mountain electric bike with the Cube AMS Hybrid 177 C:62 TM 600X. This enduro-focused e-MTB combines a lightweight C:62® carbon frame with 170mm Fox Performance suspension, powerful Bosch Performance Line CX motor (100Nm), 600Wh battery capacity, and aggressive mullet wheel configuration (29″ front/27.5″ rear) for unmatched descending capability and all-day trail dominance.

C:62® Carbon Monocoque – Enduro-Focused Construction

Built from Cube’s premium C:62® carbon fiber using Advanced Twin Mold Technology, this electric mountain bike delivers exceptional strength-to-weight performance for aggressive trail riding. The high modulus carbon fiber reinforced with nano particle-infused resin creates an extremely durable chassis capable of handling the rowdiest descents and steepest climbs. The fully integrated 600Wh Bosch PowerTube battery maintains optimal weight distribution with PowerMore compatibility for an additional 250Wh range extender when all-day epics demand extra juice.

Bosch Performance Line CX – Maximum Power Output

The powerful Bosch Performance Line CX drive unit delivers up to 100Nm of responsive torque, providing the muscle needed to conquer steep technical climbs and extended backcountry rides. This flagship electric motor represents ten years of trail-tested development, offering precise power delivery, quiet operation, and lightweight performance. The integrated Bosch Mini Remote with Kiox 400C display provides intuitive control and comprehensive ride data protection within the top tube.

170mm Fox Suspension – Premium Enduro Performance

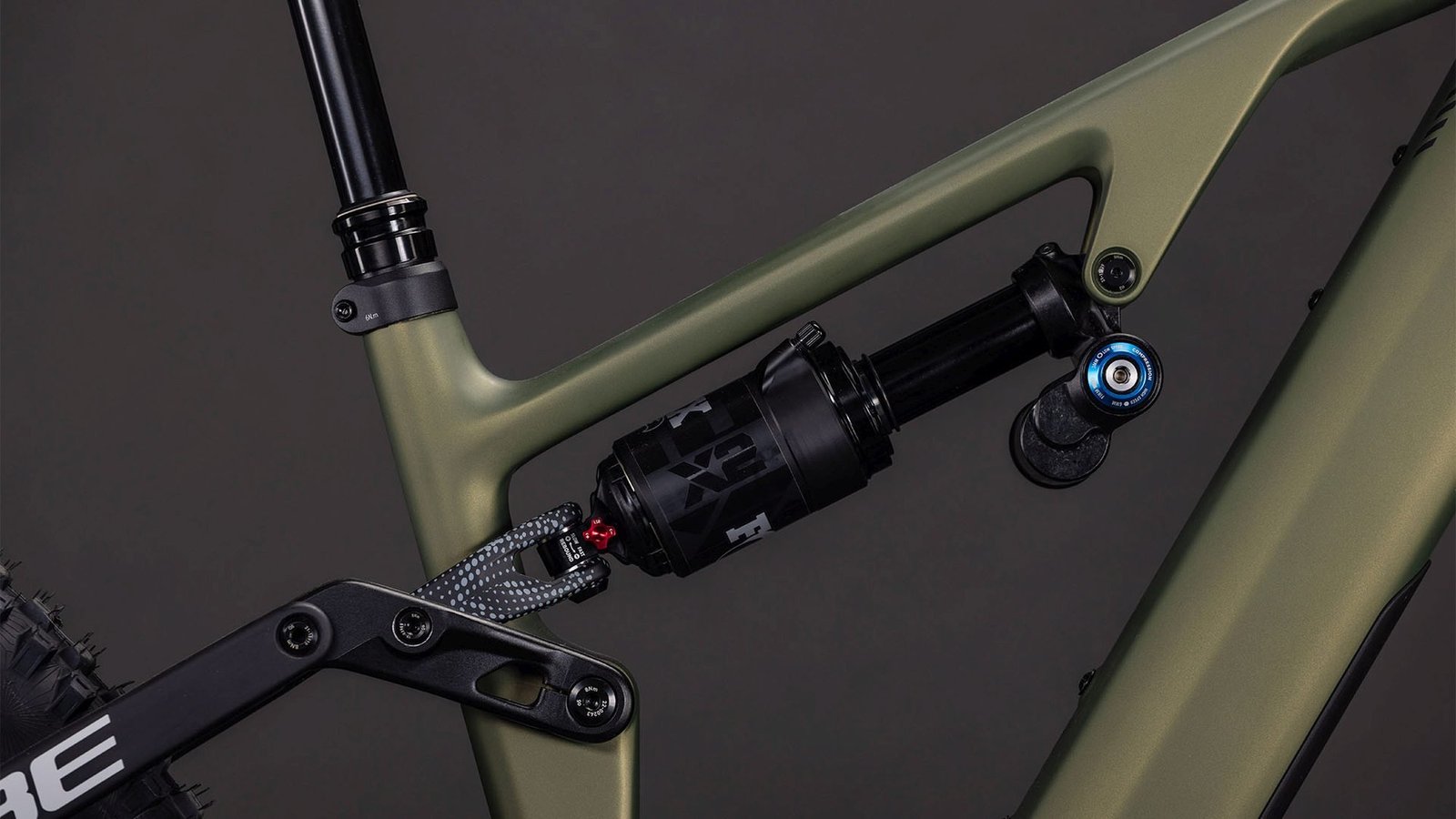

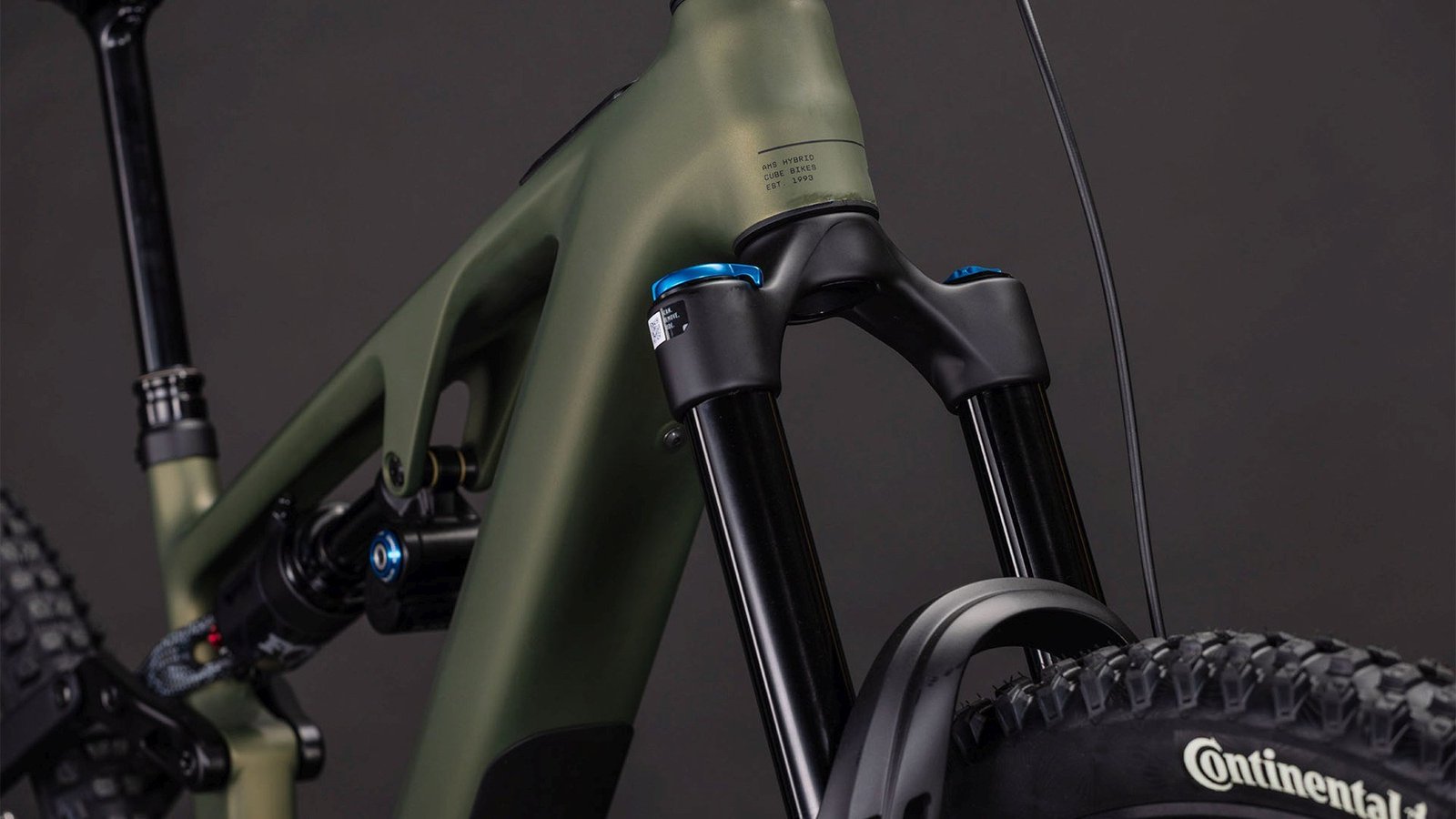

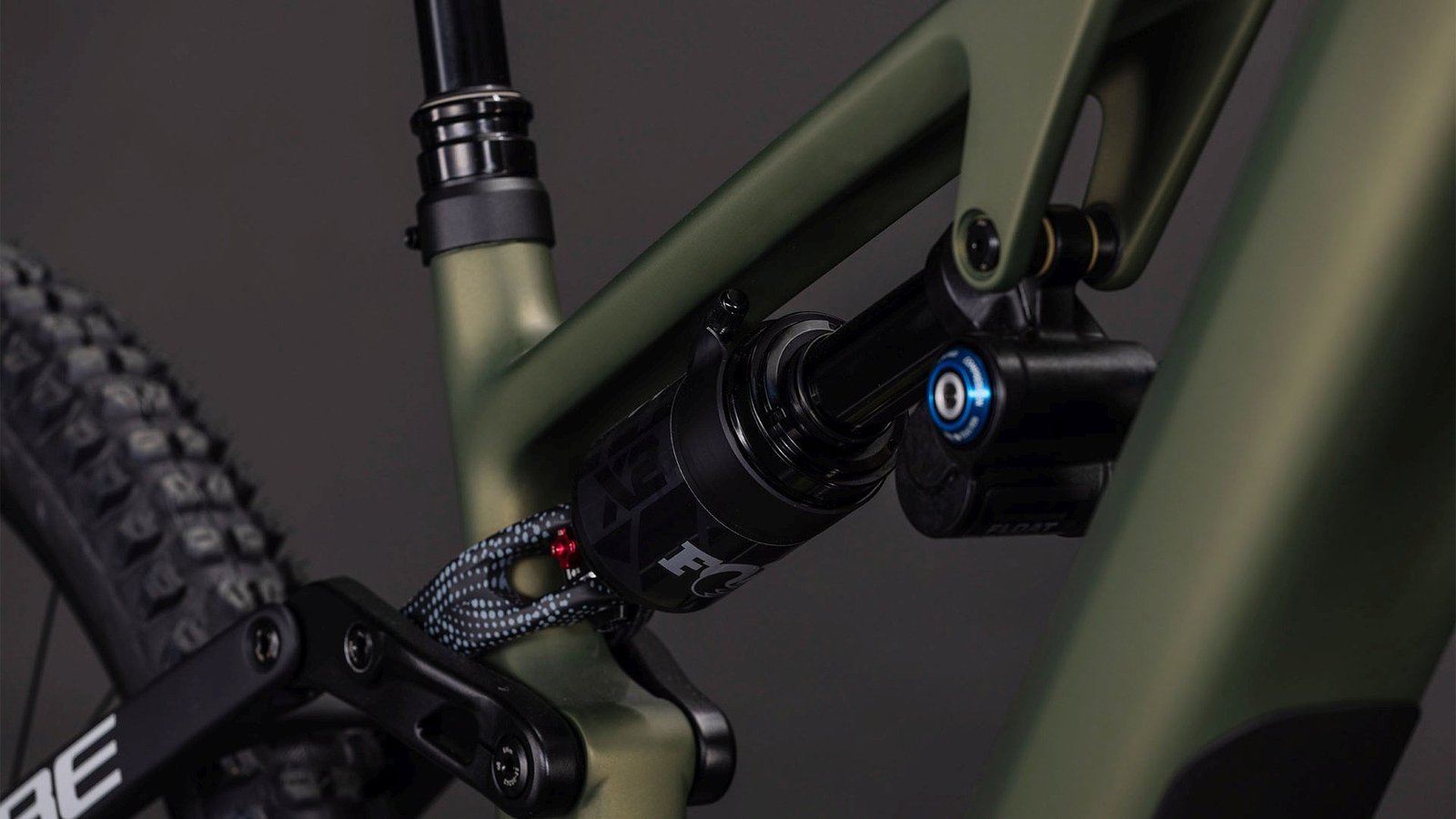

Take on the most demanding terrain with confidence thanks to Fox’s flagship suspension package. The Fox 38 Float Performance fork (170mm travel, GRIP damper, tapered, 15x110mm) delivers exceptional stiffness, control, and small-bump sensitivity. Paired with a Fox Float X2 Performance rear shock (230x65mm, adjustable high/low speed compression and rebound, 2-position lever), this suspension system provides plush trail manners with aggressive bottom-out resistance for charging descents and technical rock gardens.

Mullet Wheel Configuration – Aggressive Handling Setup

The 177 designation indicates this bike’s unique mullet configuration: 29-inch front wheel for roll-over capability and traction, combined with a 27.5-inch rear wheel for agile handling and quick direction changes. This mixed-wheel setup delivers the best of both worlds: confident high-speed stability on technical descents while maintaining playful, maneuverable character in tight sections and switchbacks.

SRAM Eagle Transmission – Robust 12-Speed Shifting

SRAM’s innovative Eagle 90 Transmission 12-speed drivetrain delivers bulletproof performance designed specifically for the demands of e-MTB riding. The robust 10-52T cassette provides ultra-wide range gearing for steep technical climbs and high-speed descents. Transmission technology features an overhung derailleur design that improves shift quality under load and enhances durability against trail impacts.

SRAM Maven Silver Hydraulic Brakes

Powerful, confidence-inspiring braking comes from SRAM’s Maven Silver hydraulic disc brakes with dual 200mm rotors front and rear. These high-performance brakes deliver exceptional modulation, consistent power, and fade-free performance essential for controlling a 21.9kg e-MTB on extended descents and technical terrain. Maven represents SRAM’s latest brake technology with increased power and heat management.

Premium Enduro Components

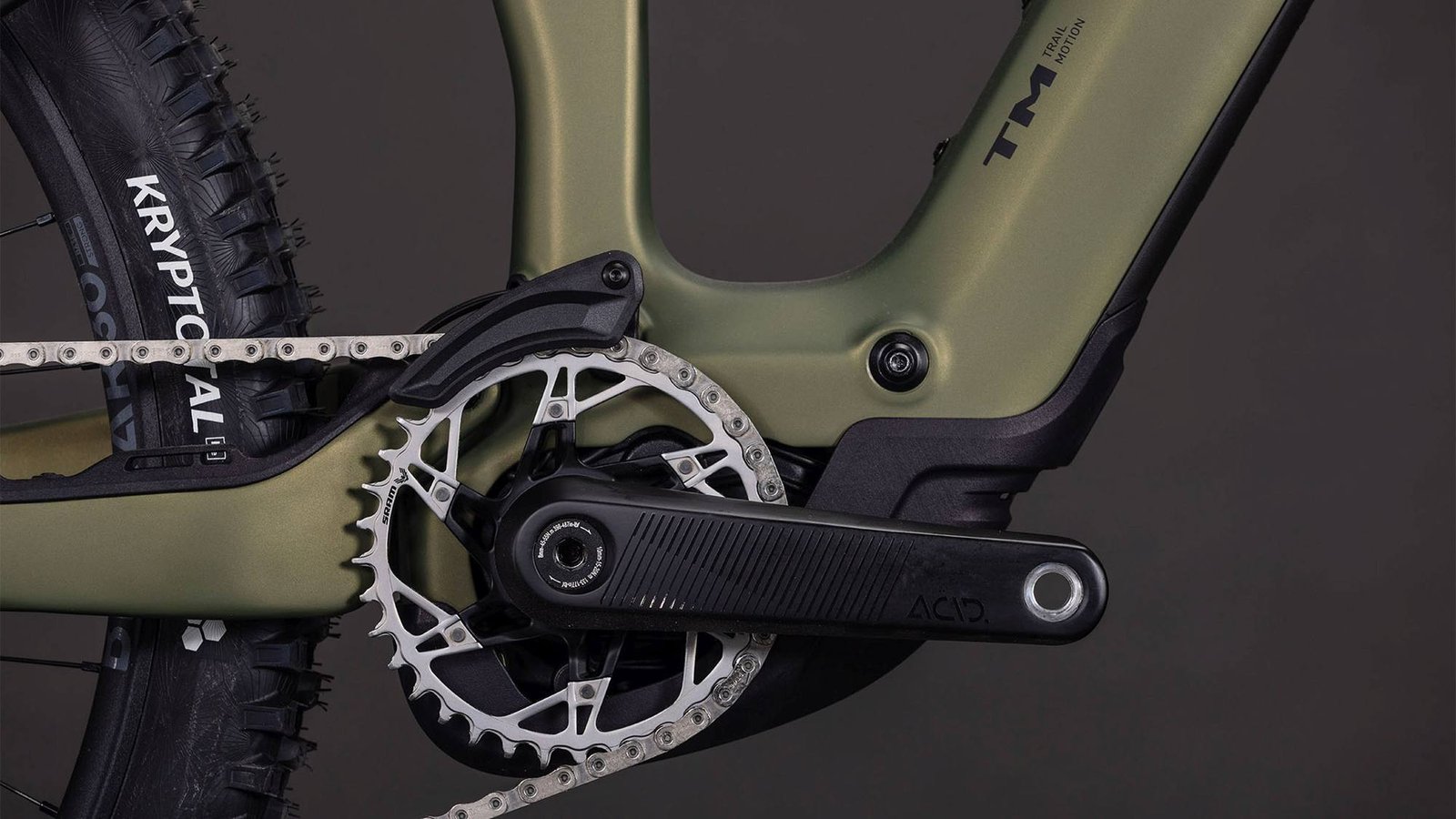

ACID MTB Hybrid Carbon crankset: 36T chainring for weight savings and strength
Newmen Beskar 30 wheels: Base/strong spec with 28/32 spokes, tubeless-ready
Continental gravity tires: Argotal 2.4″ Enduro Super Soft (front), Kryptotal 2.4″ Downhill Soft (rear)
Newmen Evolution SL stem: Lightweight 50mm aluminum stem
Newmen Beskar 318.40 handlebar: VariGrip System compatible (780mm width)
Newmen Slat VGS grips: VariGrip System integrated
Dropper seatpost: Internal routing with handlebar remote lever
Adjustable headset: 0.6° angle adjustment (slack/moderate geometry)
UDH derailleur hanger: Universal compatibility and future-proofing
Bosch Kiox 400C display: Integrated top tube protection
Bosch 4A fast charger: Quicker recharge times included

Advanced Geometry and Integration

The Agile Trail Geometry features adjustable head tube angle (63.6°/64.2° slack/moderate), lowered standover height, and optimized rider positioning for adventurous line choices. Short 443mm chainstays enhance playfulness while maintaining stability. Advanced Internal Cable Routing routes all cables through the headset for clean aesthetics and protected components. The Direct Mount chain guide prevents drops on rough terrain.

Enduro Trail Performance

At 21.9kg total weight with 170mm front and rear travel, the AMS Hybrid 177 C:62 TM represents purpose-built enduro e-MTB performance. The combination of Fox 38/X2 suspension, Continental gravity tires, SRAM Maven brakes, and mullet wheel configuration creates an all-mountain weapon capable of tackling bike park laps, technical descents, and all-day backcountry missions with equal confidence.

Specifications

Frame

Fork – Fox 38 Float Performance GRIP, Tapered, 15x110mm, 170mm
Shock – Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever
Weight – 21.9kg

E-bike System

Engine – Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)
Battery – Bosch PowerTube 600
Display – Bosch Kiox 400C

Drivetrain and brakes

Front brake – Sram Maven Silver, Hydr. Disc Brake (200/200)
Rear brake – Sram Maven Silver, Hydr. Disc Brake (200/200)
Rear derailleur – Sram Eagle 90 Transmission, 12-Speed
Shifters – Sram Eagle 90 Transmission
Crankset – Acid MTB Hybrid Carbon, 32T
Cassette – Sram XS-1275, 10-52T
Chain – Sram GX Eagle™ Transmission

Cockpit

Headset – Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar – Newmen Beskar 318.40 w/ VariGrip System
Stem – Newmen Evolution SL 318.4, 31.8mm
Bar tape or grips – Newmen Slat VGS

Wheels

Wheels – Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre – Continental Argotal, Enduro Super Soft, Tubeless Ready, 2.4
Rear Tyre – Continental Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4

Other parts

Saddle – Acid Venec EMTB Trail 140
Seatpost – Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp – CUBE Seatpost clamp
Pedals – Acid PP MTB
