CUBE AMS Hybrid ONE44 C:62 Race 400X

Description

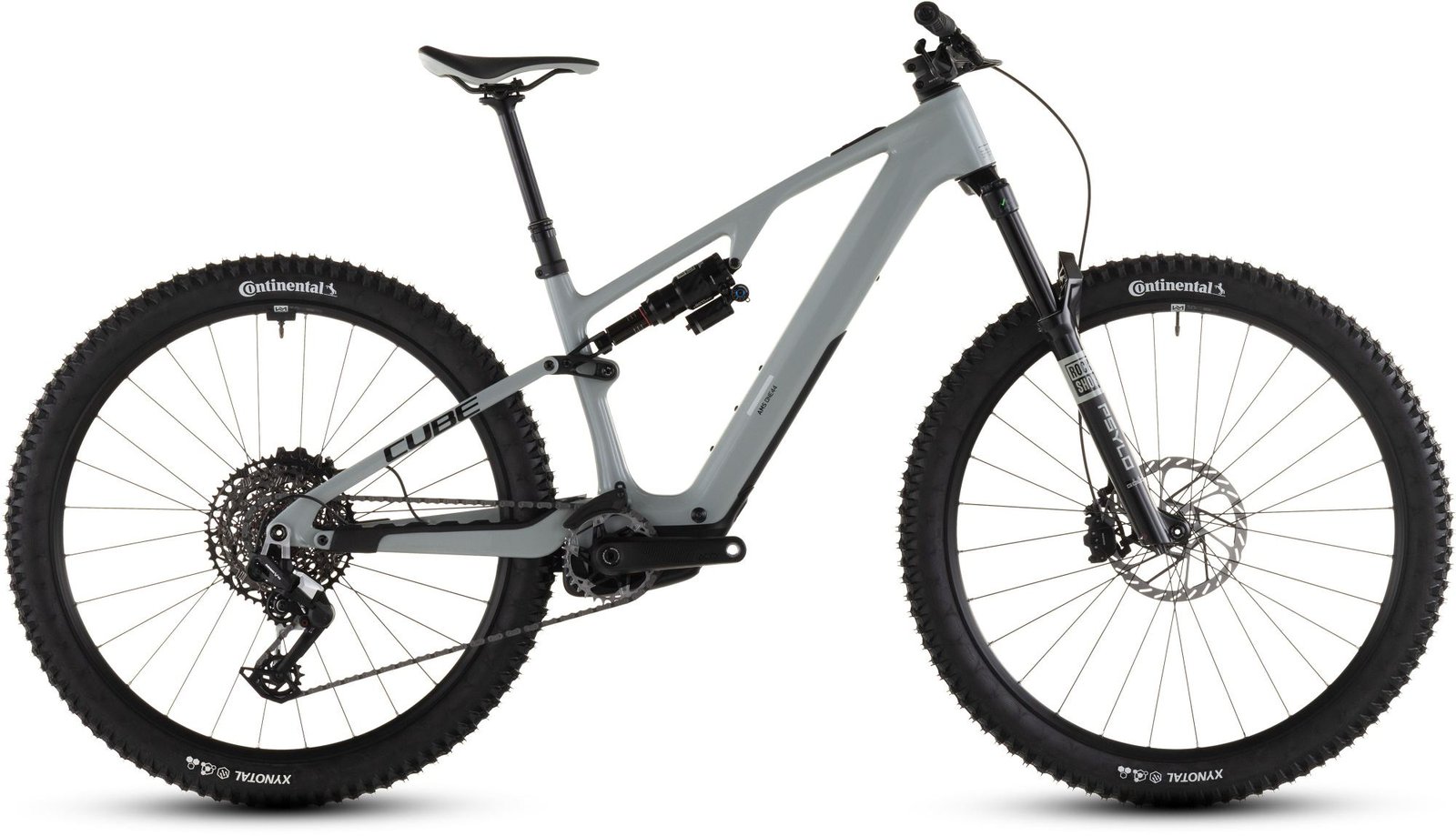

Cube AMS Hybrid ONE44 C:62 Race 400X – Premium Carbon E-MTB with SRAM Transmission

Elevate your trail riding with the Cube AMS Hybrid ONE44 C:62 Race 400X, a premium full suspension electric mountain bike that combines cutting-edge SRAM components with lightweight C:62® carbon construction. Powered by Bosch’s efficient SX motor and featuring advanced RockShox suspension, this e-bike delivers unmatched performance for serious trail enthusiasts.

Lightweight C:62® Carbon Frame Design

Built with Cube’s proven C:62® carbon fiber monocoque using Advanced Twin Mold Technology, this electric mountain bike achieves an impressive 19.8kg total weight while maintaining exceptional trail durability. The Agile Trail Geometry provides optimal weight distribution and lower standover height for confident maneuvering on technical terrain. The fully integrated 400Wh Bosch CompactTube battery sits low in the down tube for superior handling, with PowerMore compatibility allowing a 250Wh range extender for extended adventures.

Bosch Performance Line SX Motor System

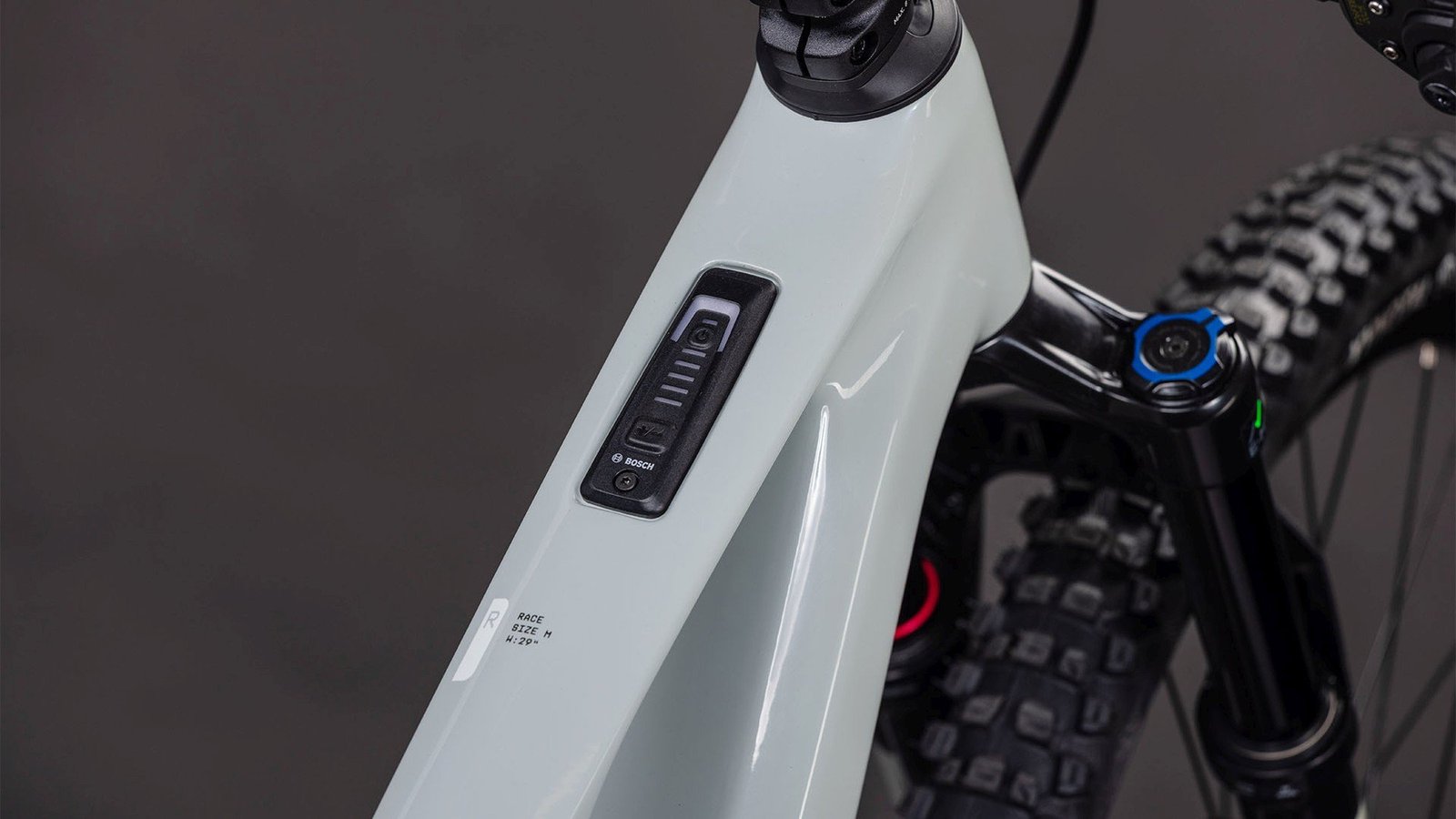

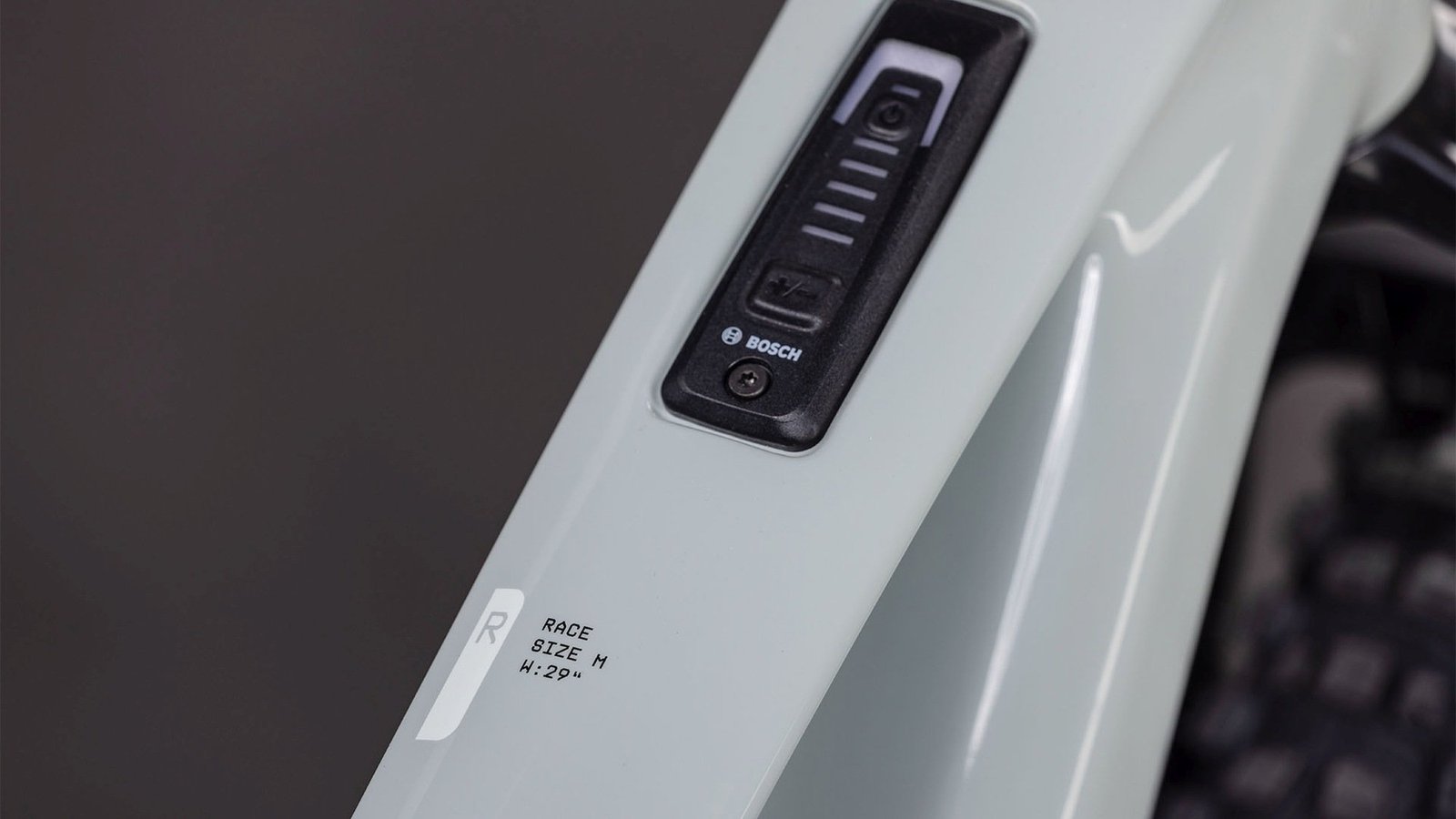

Experience natural pedal-assist with Bosch’s lightweight SX drive unit delivering up to 60Nm of torque. This compact e-bike motor provides smooth, responsive power without the bulk of traditional e-MTB systems, maintaining the agile feel that trail riders demand. The intuitive Bosch System Controller with Mini Remote offers seamless mode switching and smart features including walk assistance.

RockShox Premium Suspension Package

Conquer challenging trails with confidence using the RockShox Psylo Gold RC Air fork (140mm travel, tapered, lockout) paired with a RockShox Super Deluxe Select+ rear shock (210x55mm). This premium suspension setup delivers plush small-bump sensitivity while maintaining pedaling efficiency on climbs. Adjustable rebound and compression with a 2-position lever allows riders to fine-tune performance for varied terrain.

SRAM Eagle 90 Transmission Drivetrain

Experience next-generation shifting reliability with SRAM’s revolutionary Eagle Transmission technology. The SRAM Eagle 90 Transmission 12-speed system features a massive 10-52T XS-1270 cassette for ultra-wide gearing range, perfect for steep technical climbs and fast descents. The robust chain and derailleur design handles increased e-bike torque while delivering crisp, dependable shifts in all conditions.

SRAM Maven Hydraulic Disc Brakes

Powerful stopping performance comes from SRAM Maven Base hydraulic disc brakes featuring 200mm front and 180mm rear rotors. These high-performance brakes provide exceptional modulation and consistent power, crucial for controlling an e-MTB on technical descents and in variable conditions.

Premium Trail Components

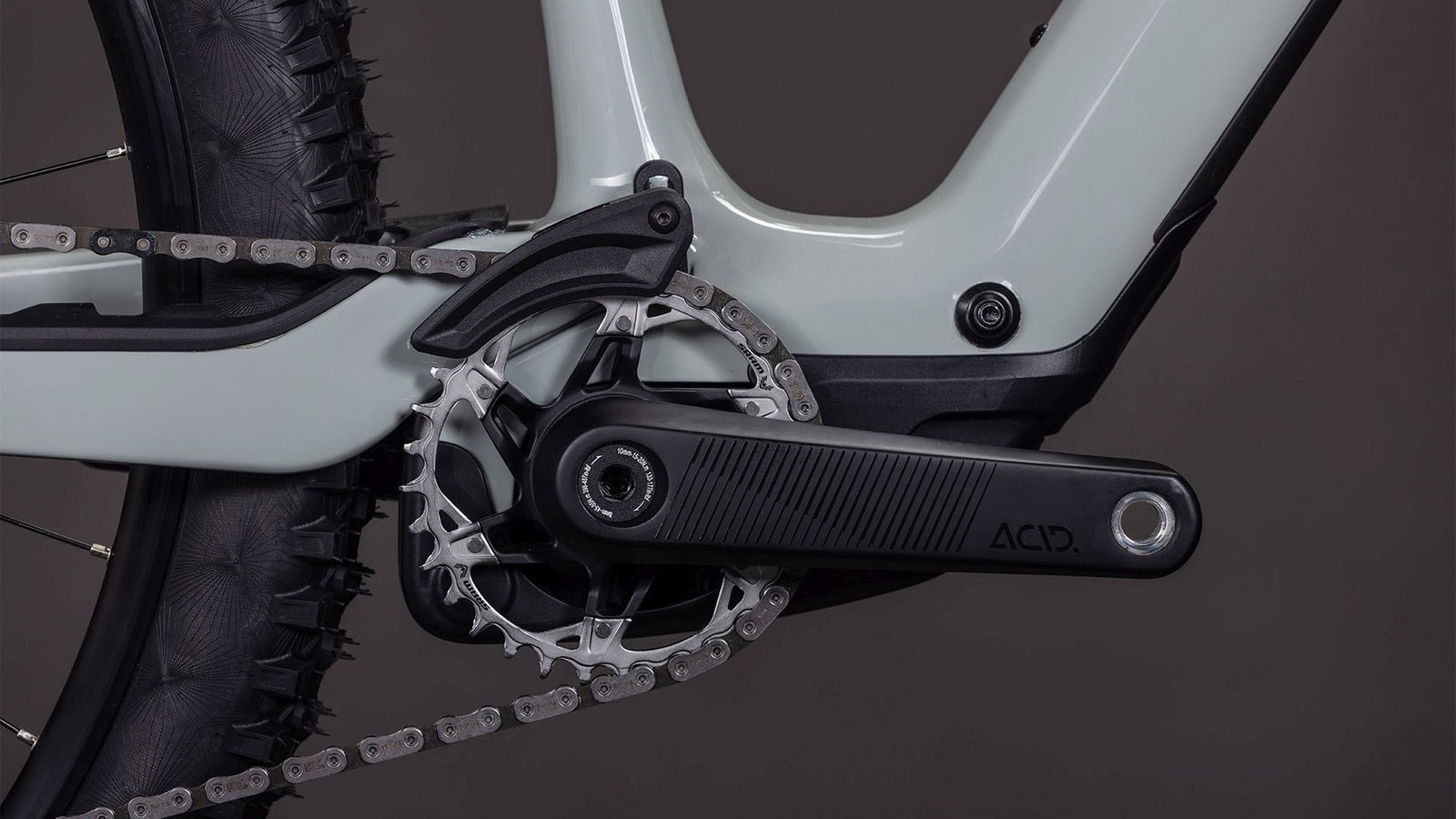

Carbon crankset: ACID MTB Hybrid Carbon with 32T chainring reduces rotating weight
Newmen Performance 30 wheels: Tubeless-ready with 28 spokes, Boost 148 rear spacing
Continental Xynotal tires: 2.4″ Enduro Soft compound, tubeless-ready for maximum trail grip
Dropper seatpost: Internal routing with handlebar lever for on-the-fly saddle height adjustment
Adjustable headset: 0.6° angle adjustment to customize handling characteristics
UDH derailleur hanger: Universal compatibility for easy replacement and future-proofing

Advanced Integration Features

Cube’s innovative Advanced Internal Cable Routing feeds all cables through the headset for a clean, protected setup. The Direct Mount chain guide prevents drops on rough terrain, while the sleek silhouette hides all cables from trail debris. This integrated approach combines aesthetics with functionality.

All-Mountain Versatility

The AMS Hybrid ONE44 C:62 Race excels across diverse terrain – technical singletrack, flow trails, all-day epics, and challenging climbs. With a maximum rider weight capacity of 110kg (including clothing and equipment), available in S, M, L, XL sizes, and compatibility with accessories, this e-mountain bike adapts to your riding ambitions.

Specifications

Frame

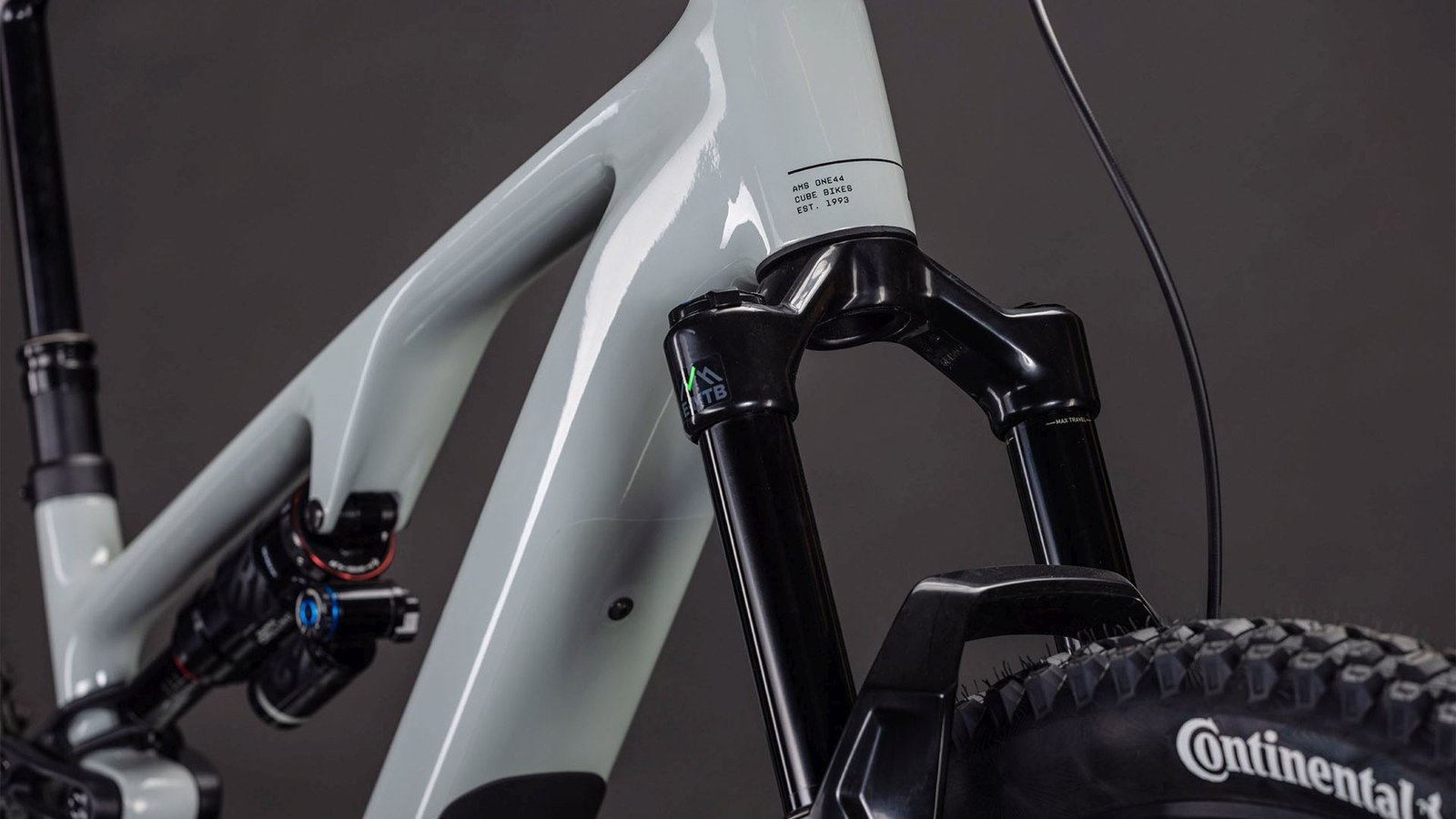

Fork – Rockshox Psylo Gold RC Air, Tapered, 15x110mm, Lockout, 140mm

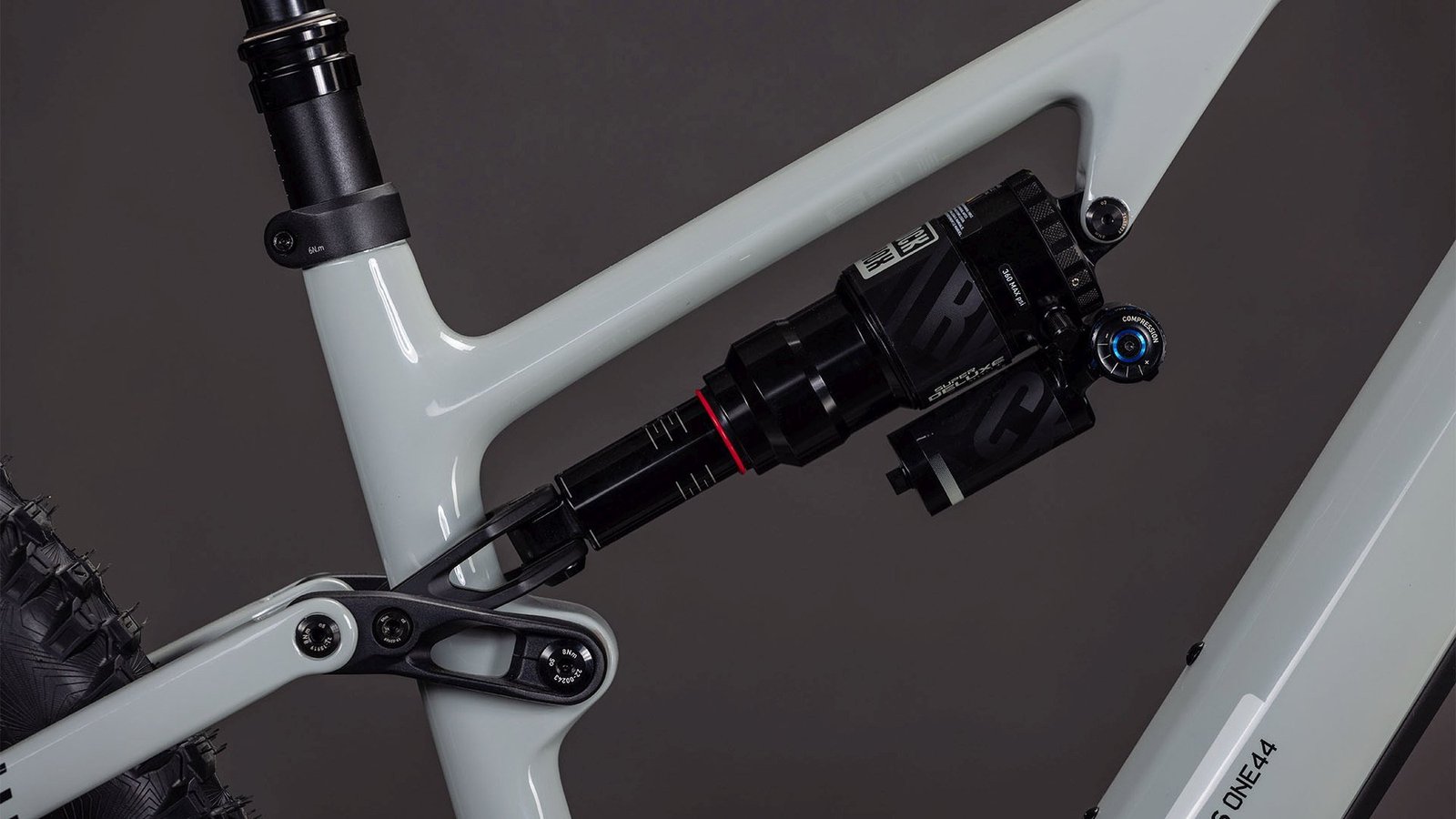

Shock – Rockshox Super Deluxe Select+, 210x55mm, Rebound Adjust, 2-Position Lever
Weight – 19.8kg

E-bike System

Engine – Bosch Drive Unit Performance SX max. 60Nm (BDU31)
Battery – Bosch CompactTube 400

Drivetrain and brakes

Front brake – Sram Maven Base, Hydr. Disc Brake (200/180)
Rear brake – Sram Maven Base, Hydr. Disc Brake (200/180)
Rear derailleur – Sram Eagle 90 Transmission, 12-Speed
Shifters – Sram Eagle 70 Transmission
Crankset – Acid MTB Hybrid Carbon, 32T
Cassette – Sram XS-1270, 10-52T
Chain – Sram Eagle 70 Transmission

Cockpit

Headset – Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar – Newmen Evolution SL 318.25, 780mm
Stem – Cube Stereo Stem w/ Cable Routing
Bar tape or grips – Acid Disrupt, soft compound

Wheels

Wheels – Newmen Performance 30 base/base, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front tyre – Continental Xynotal, Enduro Soft, Tubeless Ready, 2.4
Rear Tyre – Continental Xynotal, Enduro Soft, Tubeless Ready, 2.4

Other parts

Saddle – Acid Venec EMTB Trail 140
Seatpost – Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp – CUBE Seatpost clamp
Pedals – Acid PP MTB
