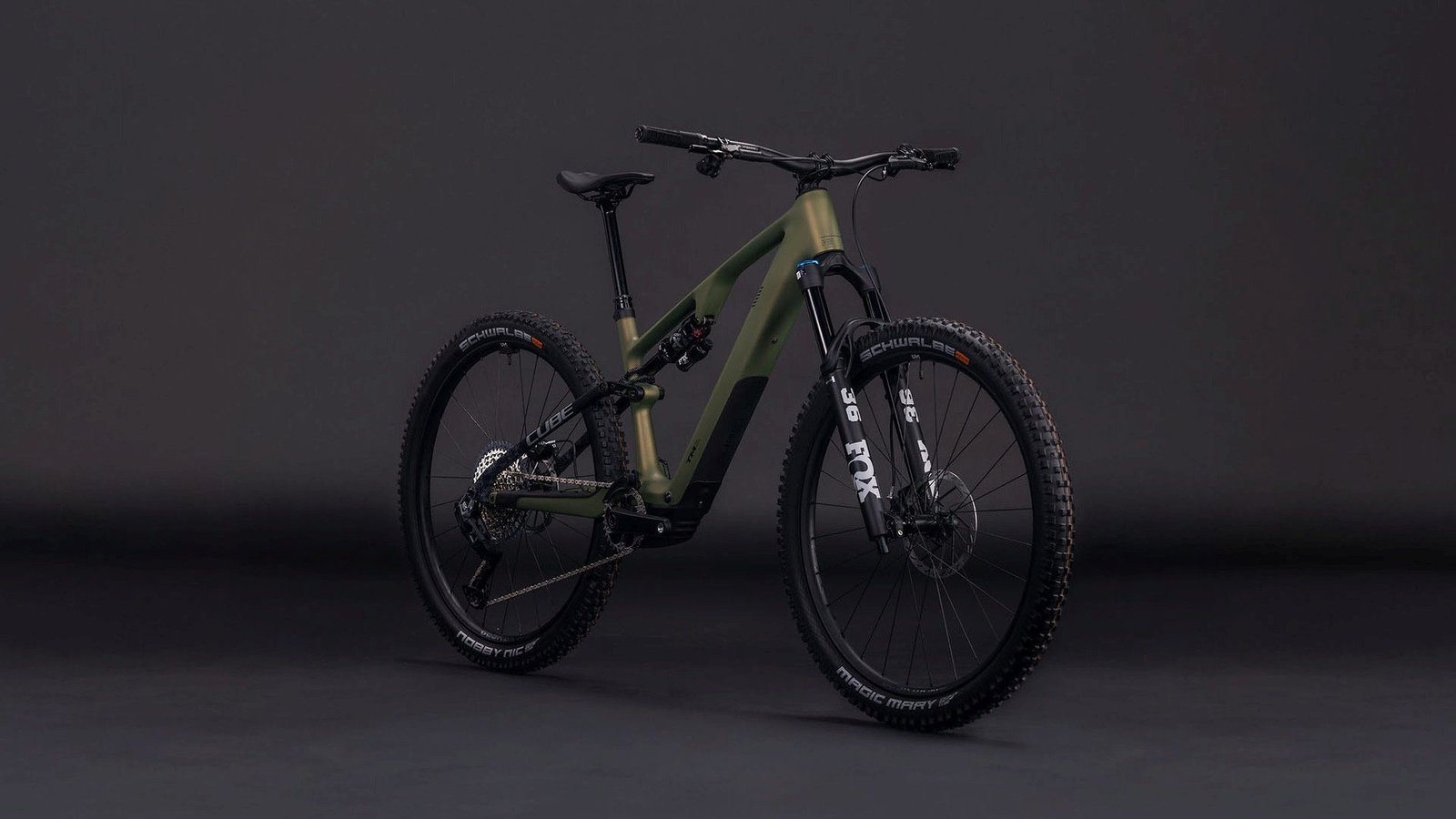

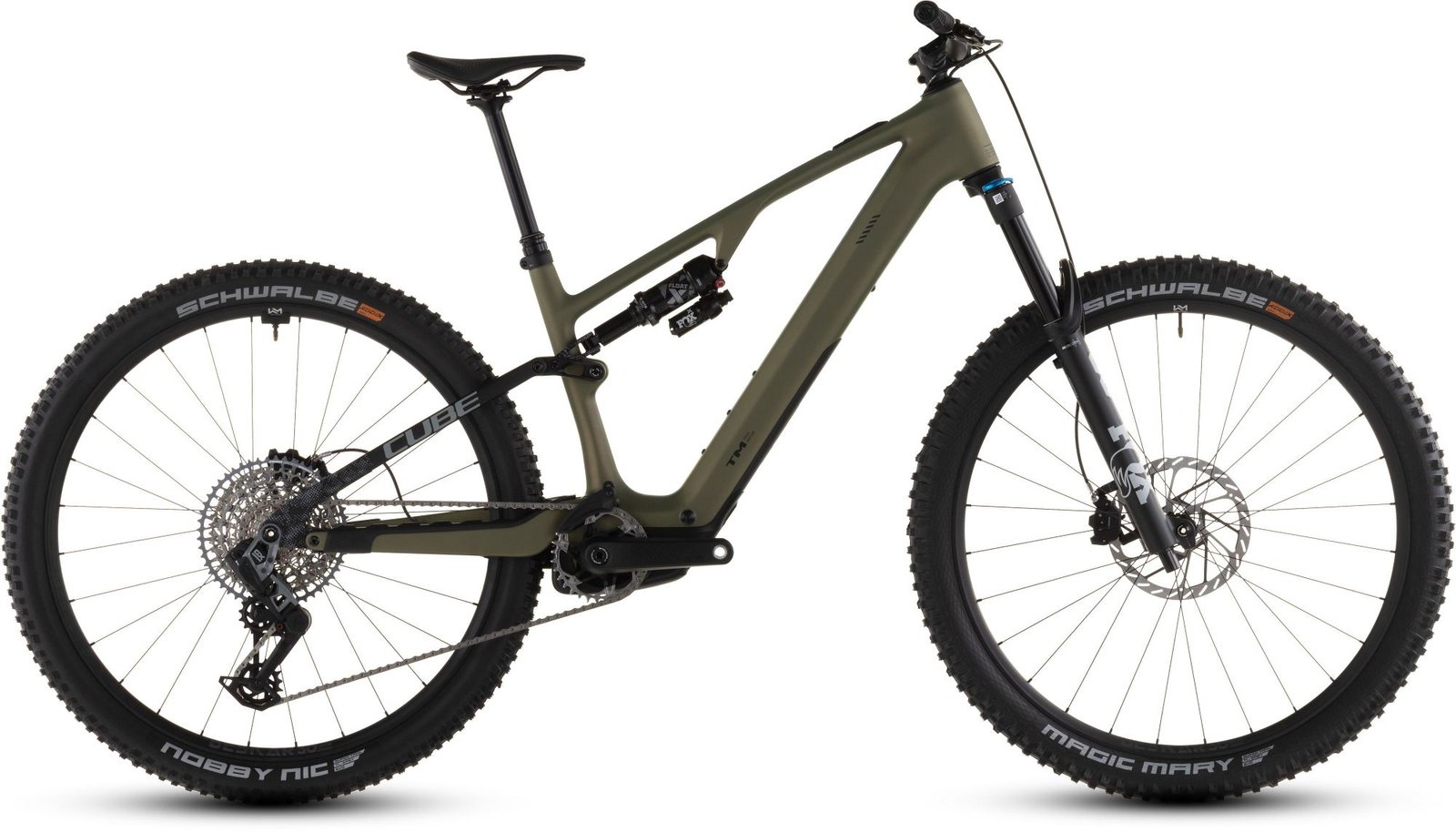

CUBE AMS Hybrid ONE44 C:68X TM 400X

Description

Cube AMS Hybrid ONE44 C:68X TM 400X – Premium Carbon E-MTB with SRAM GX AXS Transmission

Discover the pinnacle of electric mountain bike technology with the Cube AMS Hybrid ONE44 C:68X TM 400X. This flagship full suspension e-MTB combines Cube’s most advanced C:68X® carbon fiber with cutting-edge wireless electronic shifting and premium Fox Performance suspension, delivering an 18.7kg trail weapon engineered for aggressive riding.

C:68X® Carbon – Flagship Frame Technology

Crafted from Cube’s pinnacle C:68X® carbon fiber monocoque using Advanced Twin Mold Technology, this electric mountain bike achieves an exceptional 2100g frame weight. This premium material represents the optimal blend of high-modulus carbon fiber reinforced with nano particle-infused resin for maximum strength-to-weight ratio. The Agile Trail Geometry rewards adventurous line choices with lower standover height and optimal rider positioning. The fully integrated 400Wh Bosch CompactTube battery maintains perfect weight distribution, with PowerMore compatibility allowing a 250Wh range extender for marathon rides.

Bosch Performance Line SX Lightweight Motor

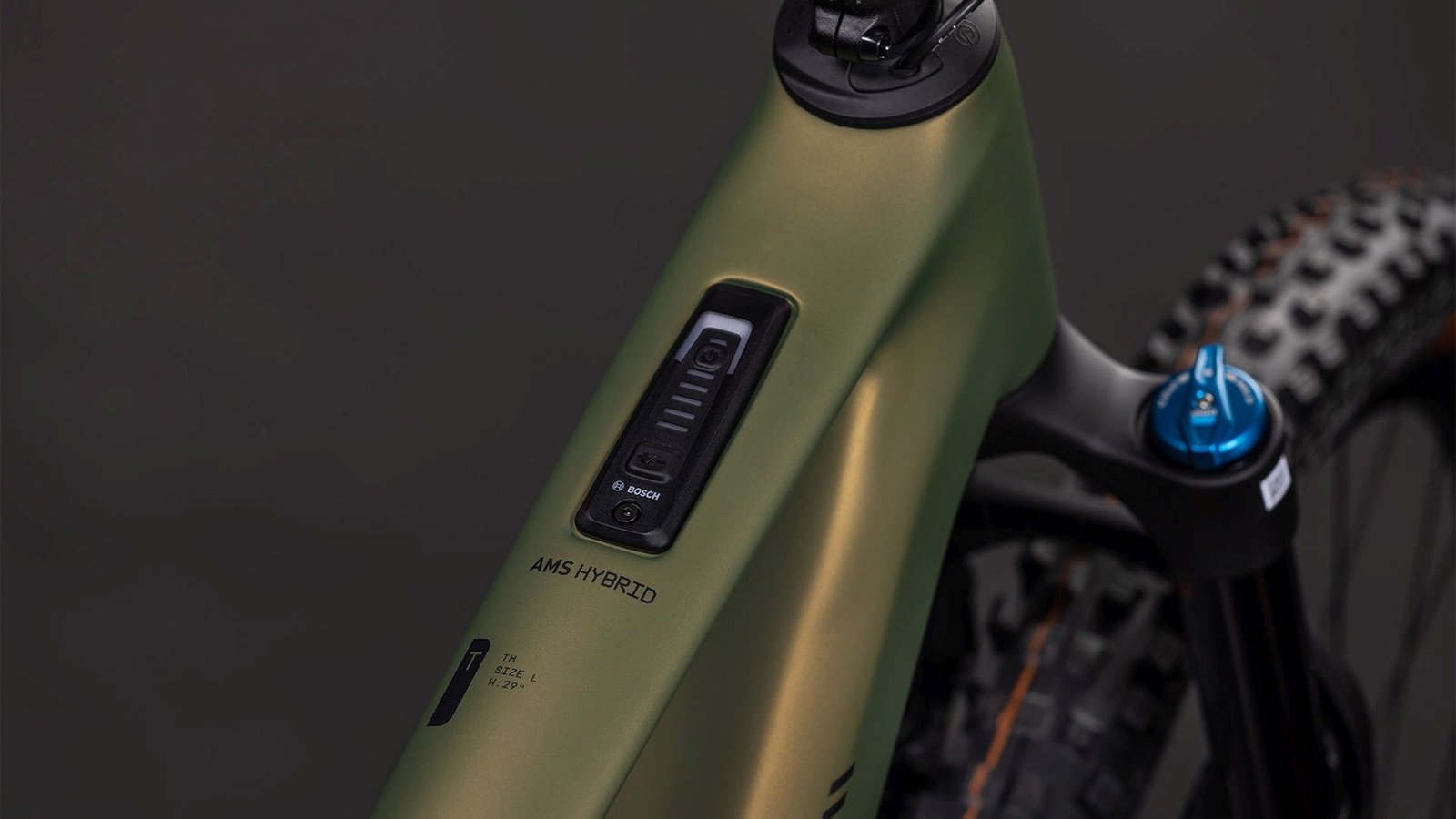

The compact Bosch SX drive unit delivers up to 60Nm of smooth, responsive torque in a lightweight package specifically engineered for sporty trail riding. This electric motor provides natural pedal-assist that enhances your power without overwhelming the bike’s agile character. The integrated Bosch System Controller with Mini Remote offers intuitive mode changes and smart features including walk assistance and seamless Bluetooth connectivity.

Fox 36 Float Performance Suspension

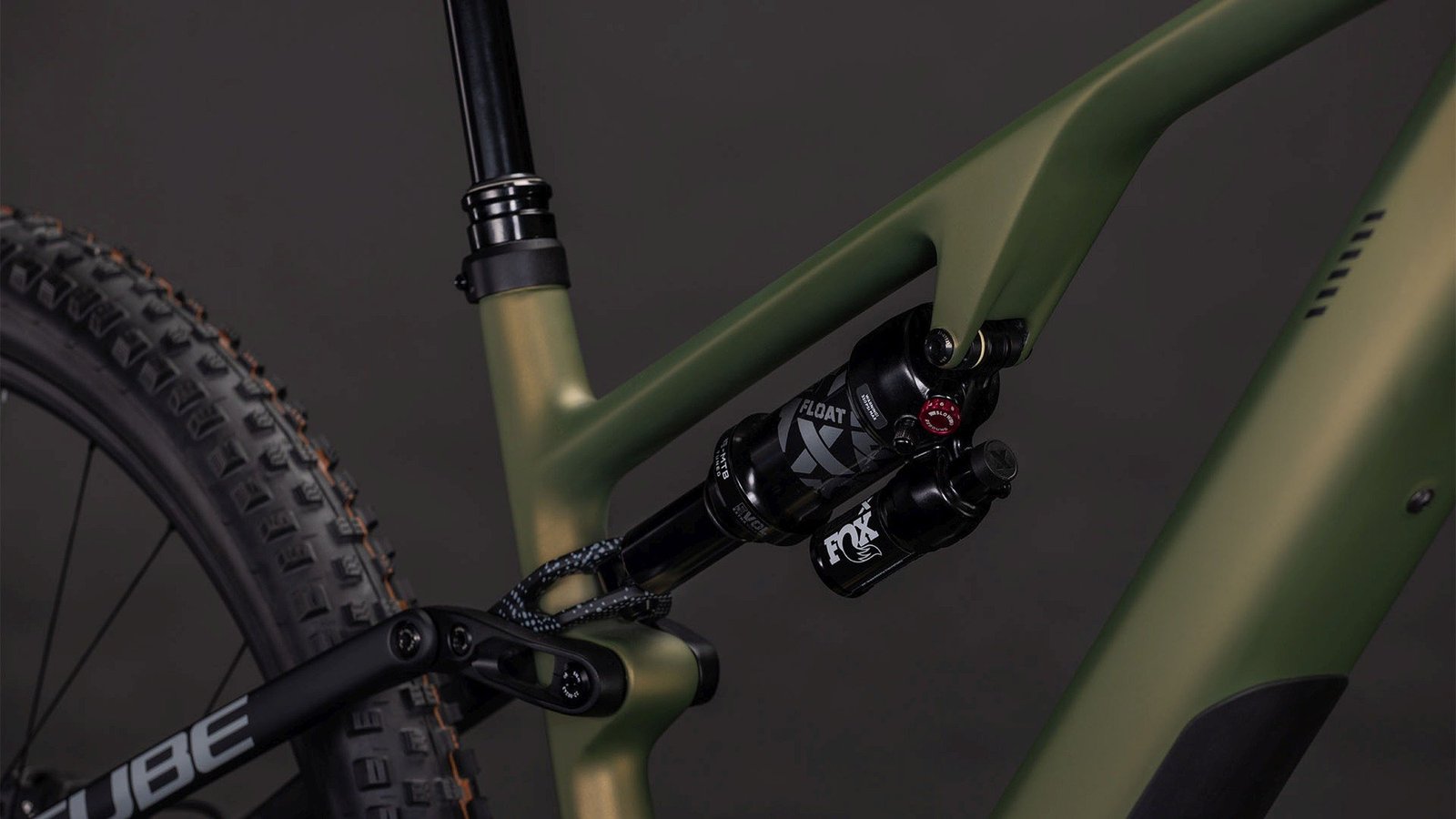

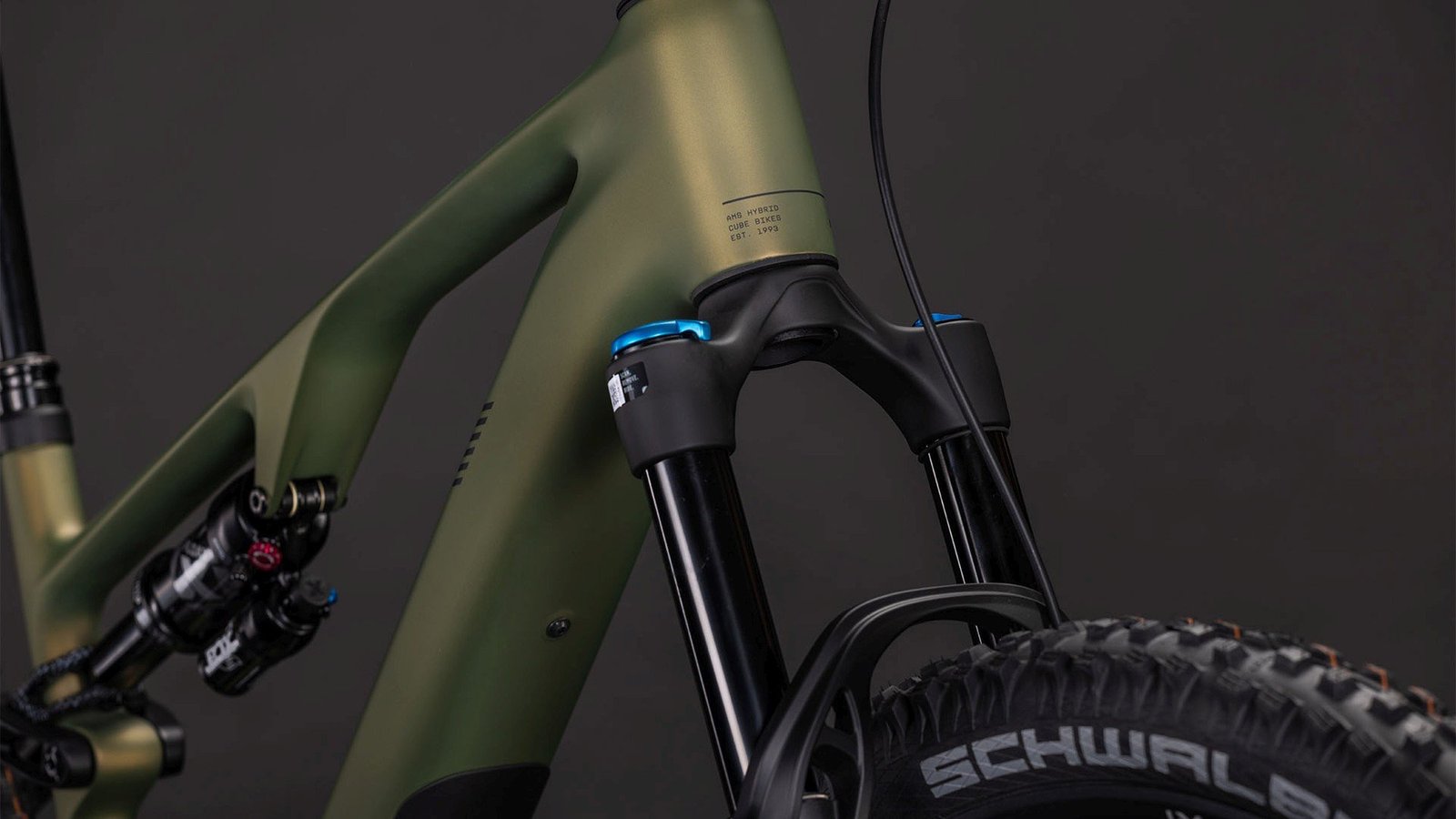

Premium Fox suspension conquers technical terrain with authority. The Fox 36 Float Performance fork (140mm travel, tapered, GRIP damper) delivers exceptional control and plushness, paired with a Fox Float X Performance rear shock (210x55mm, adjustable low-speed rebound, 2-position lever). This suspension package provides plush small-bump sensitivity, mid-stroke support, and excellent bottom-out resistance for aggressive trail riding.

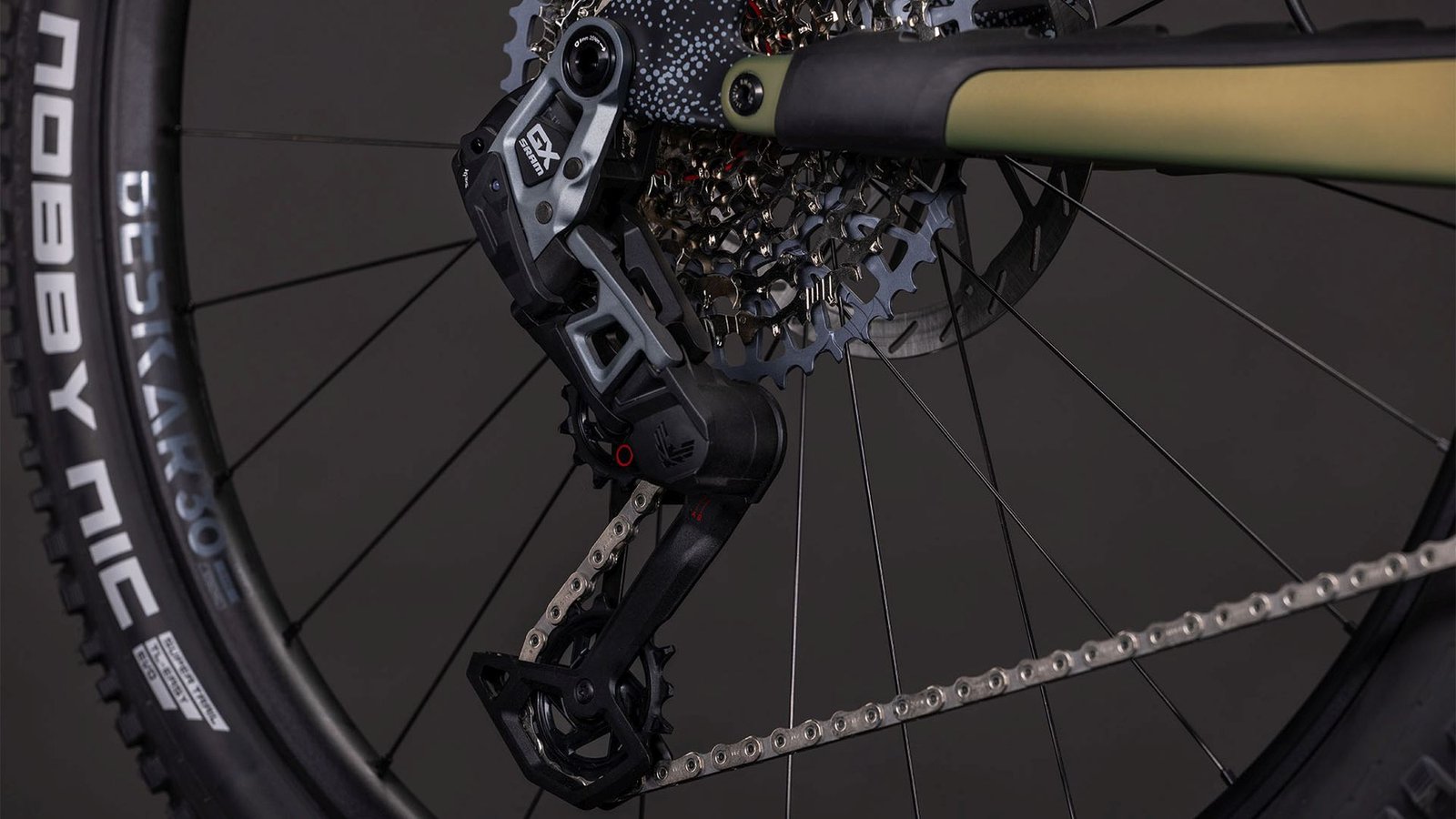

SRAM GX Eagle AXS Transmission – Wireless Electronic Shifting

Experience the future of mountain bike drivetrains with SRAM’s GX Eagle AXS Transmission wireless electronic shifting. This revolutionary 12-speed system delivers instant, precise shifts with zero cable maintenance. The robust 10-52T XS-1275 cassette provides ultra-wide range for steep technical climbs and fast descents. AXS wireless technology eliminates cables entirely while the Transmission’s overhung derailleur design offers superior durability and shift performance under load.

SRAM Maven Silver Hydraulic Brakes

Powerful, confidence-inspiring stopping comes from SRAM Maven Silver hydraulic disc brakes with 200mm front and 180mm rear rotors. These high-performance brakes deliver exceptional modulation, consistent power, and fade-free performance essential for controlling an e-MTB on extended descents and technical terrain.

Premium Trail Components

Carbon crankset: ACID MTB Hybrid Carbon with 32T chainring for weight savings
Newmen Beskar Base 30 wheels: Tubeless-ready with 28 spokes, Boost 148 spacing
Schwalbe premium tires: Magic Mary 2.4″ Super Trail (front), Nobby Nic 2.4″ Super Trail (rear)
Newmen Evolution SL components: Lightweight aluminum stem and handlebar (780mm)
Dropper seatpost: Internal routing with handlebar lever for quick height adjustments
Adjustable headset: 0.6° angle adjustment to fine-tune handling
UDH derailleur hanger: Universal compatibility and future-proofing
Bosch 4A fast charger: Quicker recharge times included

Advanced Integration Features

Cube’s innovative Advanced Internal Cable Routing system routes all cables through the headset, creating a clean, protected setup. The Direct Mount chain guide prevents drops on rough terrain, while the seamless integration maintains the frame’s elegant silhouette and protects components from trail debris.

Trail Performance Engineering

At 18.7kg total weight with a 2100g C:68X carbon frame, the AMS Hybrid ONE44 C:68X TM represents cutting-edge lightweight e-MTB design. The combination of wireless electronic shifting, premium Fox suspension, SRAM Maven brakes, and Schwalbe Magic Mary/Nobby Nic tires creates a trail bike capable of tackling the most demanding terrain with confidence and precision.

Additional information

Colourway	Reedgreen/Matrix
Size	Small, Medium, Large, X-Large

Specifications

Frame

Fork – Fox 36 Float Performance GRIP, Tapered, 15x110mm, 140mm
Shock – Fox Float X Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever
Weight – 18.7kg

E-bike System

Engine – Bosch Drive Unit Performance SX max. 60Nm (BDU31)
Battery – Bosch CompactTube 400

Drivetrain and brakes

Front brake – Sram Maven Silver, Hydr. Disc Brake (200/180)
Rear brake – Sram Maven Silver, Hydr. Disc Brake (200/180)
Rear derailleur – Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Shifters – Sram AXS™ Pod Ultimate Controller
Crankset – Acid MTB Hybrid Carbon, 32T
Cassette – Sram XS-1275, 10-52T
Chain – Sram GX Eagle™ Transmission

Cockpit

Headset – Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), Fiber Inserts for Angle Adjustment
Handlebar – Newmen Evolution SL 318.25, 780mm
Stem – Newmen Evolution SL 318.4, 31.8mm
Bar tape or grips – Acid Disrupt, soft compound

Wheels

Wheels – Newmen Beskar Base 30 base/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre – Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear Tyre – Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4

Other parts

Saddle – Acid Venec EMTB Trail 140
Seatpost – Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seatpost clamp – CUBE Seatpost clamp
Pedals – Acid PP MTB
